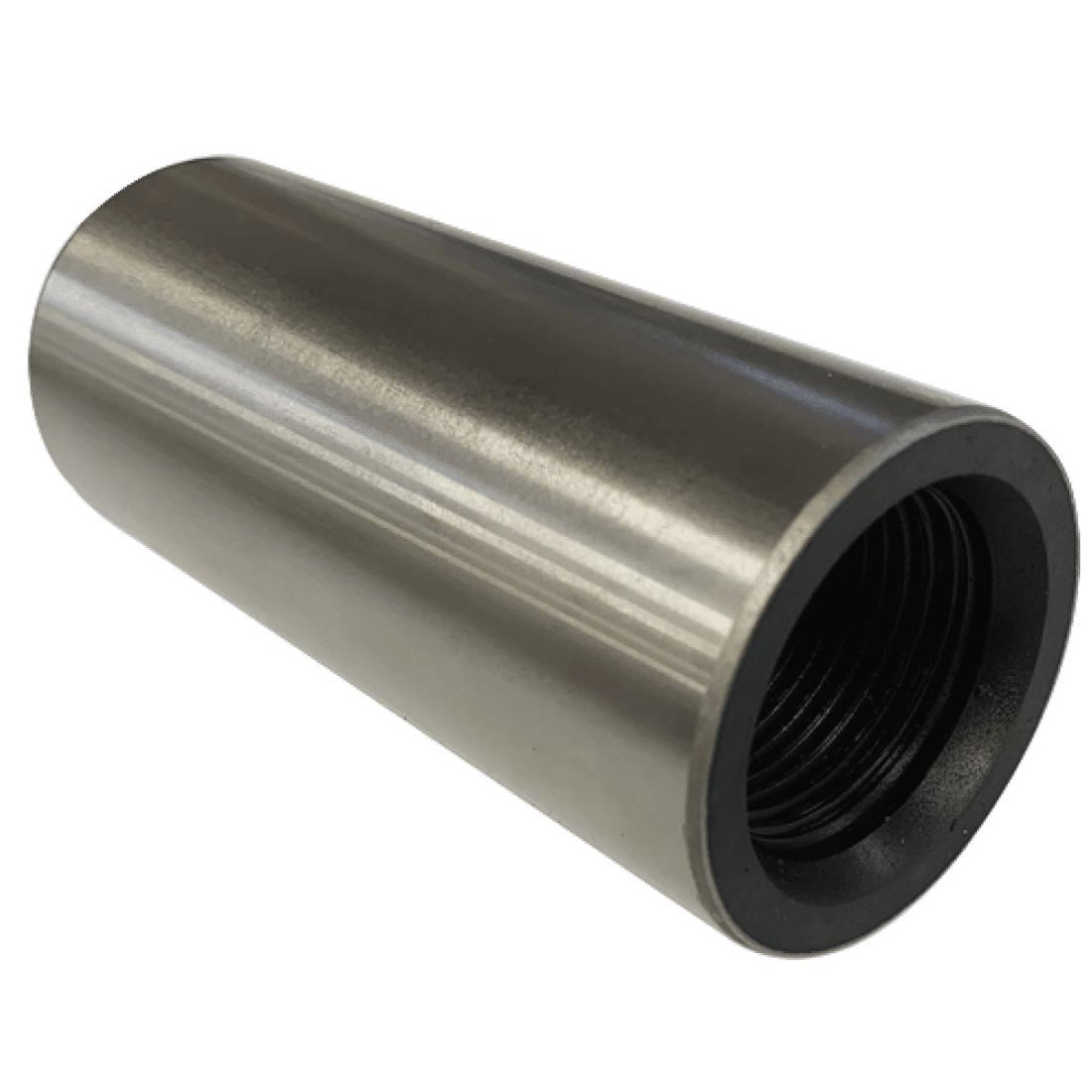

Sucker Rod Couplings

OVERVIEW

Sucker rod couplings connect individual rod sections in beam pump and progressive cavity pump (PCP) strings. Westcan stocks both full size and slim-hole designs across all standard API rod sizes. Our couplings meet API 11B dimensional and material requirements, with box threads precision machined for reliable makeup torque and extended fatigue life.

AVAILABLE PRODUCTS

Sucker Rod Couplings – Connect rods of the same size with identical box threads on both ends.

Polished Rod Couplings – Designed to connect polished rods and sinker bars, featuring a vanish cone and matching threads on both ends.

Sub-Couplings (Crossover Couplings) – Used to connect rods of different sizes, with different thread sizes on each end.

AVAILABLE GRADES

GRADE D

GRADE E

GRADE KD

HIGH-STRENGTH ALLOY

THREAD CONNECTIONS

API 11B PIN

API 11B BOX

PCP PIN

SPECIFICATIONS
STANDARD API 11B
COUPLING SIZES 5/8” to 1-1/8”
COUPLING TYPES Full size, Slim hole
MATERIAL GRADES Class T, Spray Metal and Spray Metal high strength
THREAD FORMS API 11B box thread
SURFACE FINISH Phosphate-coated
INSPECTION Thread gauge, dimensional, visual
SOUR SERVICE H2S-resistant alloy grades available
REQUEST A QUOTE

Get pricing and availability for sucker rod couplings.
