Specialty Couplings

OVERVIEW

Westcan provides a full line of specialty couplings and can build anything you need to complete your project. Our in-stock items include re-entry guides which are the first coupling of the tubing string to enter the well and provide a guide for the tubing, saw tooth couplings with teeth machined into the bottom of the coupling to break up debris in the well and mule shoes which are a tubing coupling that is attached on the bottom of a string. The device guides the string toward the center of the hole and minimizes hang ups in the wellbore as the string is lowered into the well.

KEY FEATURES

Threads inspected per API 5B tolerances

Mill certifications and heat numbers traceable on request

Upset ends: External Upset (EUE) and Non-Upset (NUE)

AVAILABLE GRADES

J55

L80

THREAD CONNECTIONS

EUE

NUE

AVAILABLE SIZE (OD)

2-3/8"

2-7/8"

3-1/2"

4-1/2"

SPECIFICATIONS
THREAD FORMS API 11B box thread
SURFACE FINISH Painted
INSPECTION Thread gauge, dimensional, visual
SOUR SERVICE H2S-resistant grades available
REQUEST A QUOTE

Get pricing and availability for specialty couplings.


OUR FEATURED PRODUCTS

related PRODUCTS

NPT TAPPED AVAILABLE

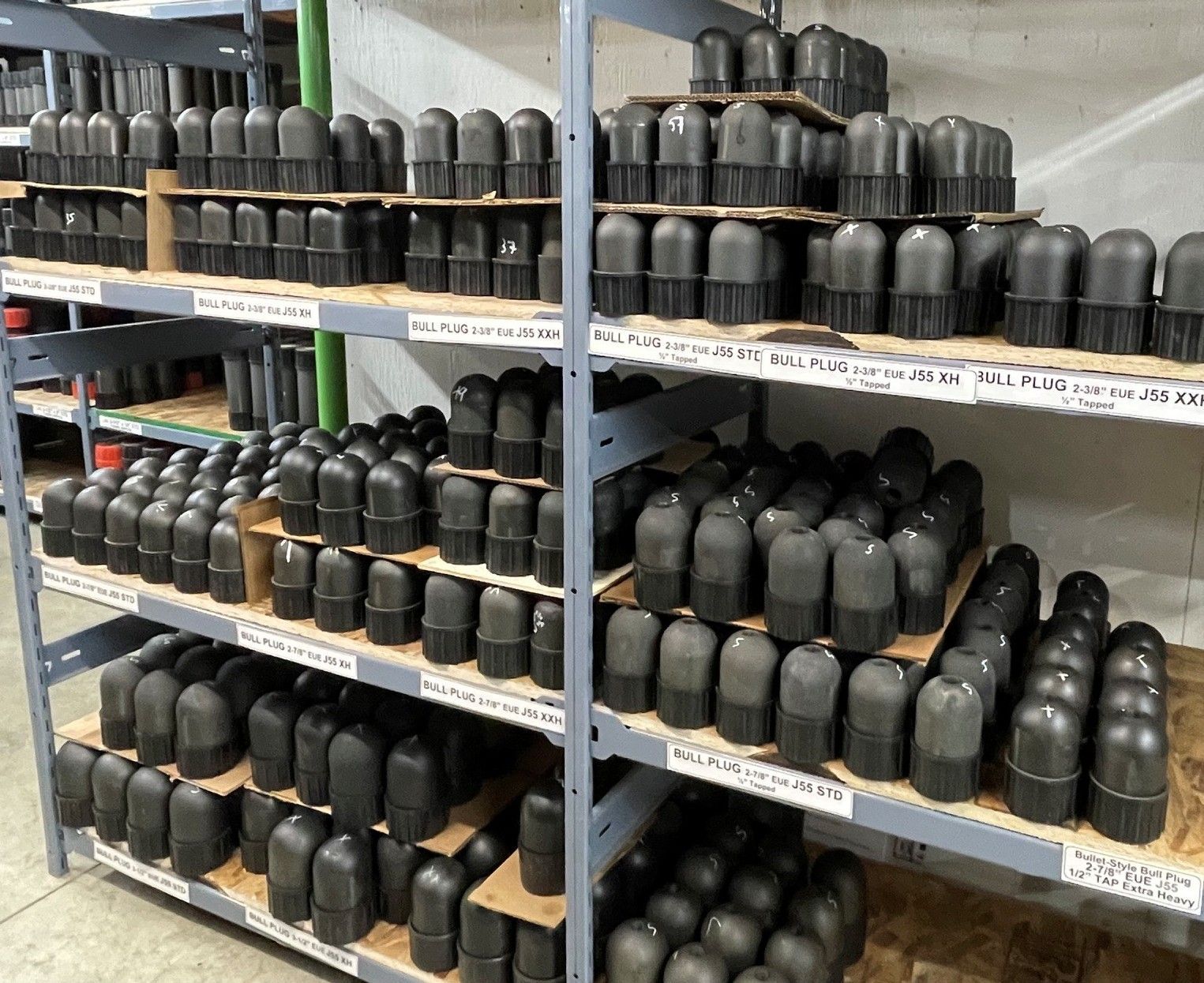

BULL PLUGS
