Tubing Pup Joints

OVERVIEW

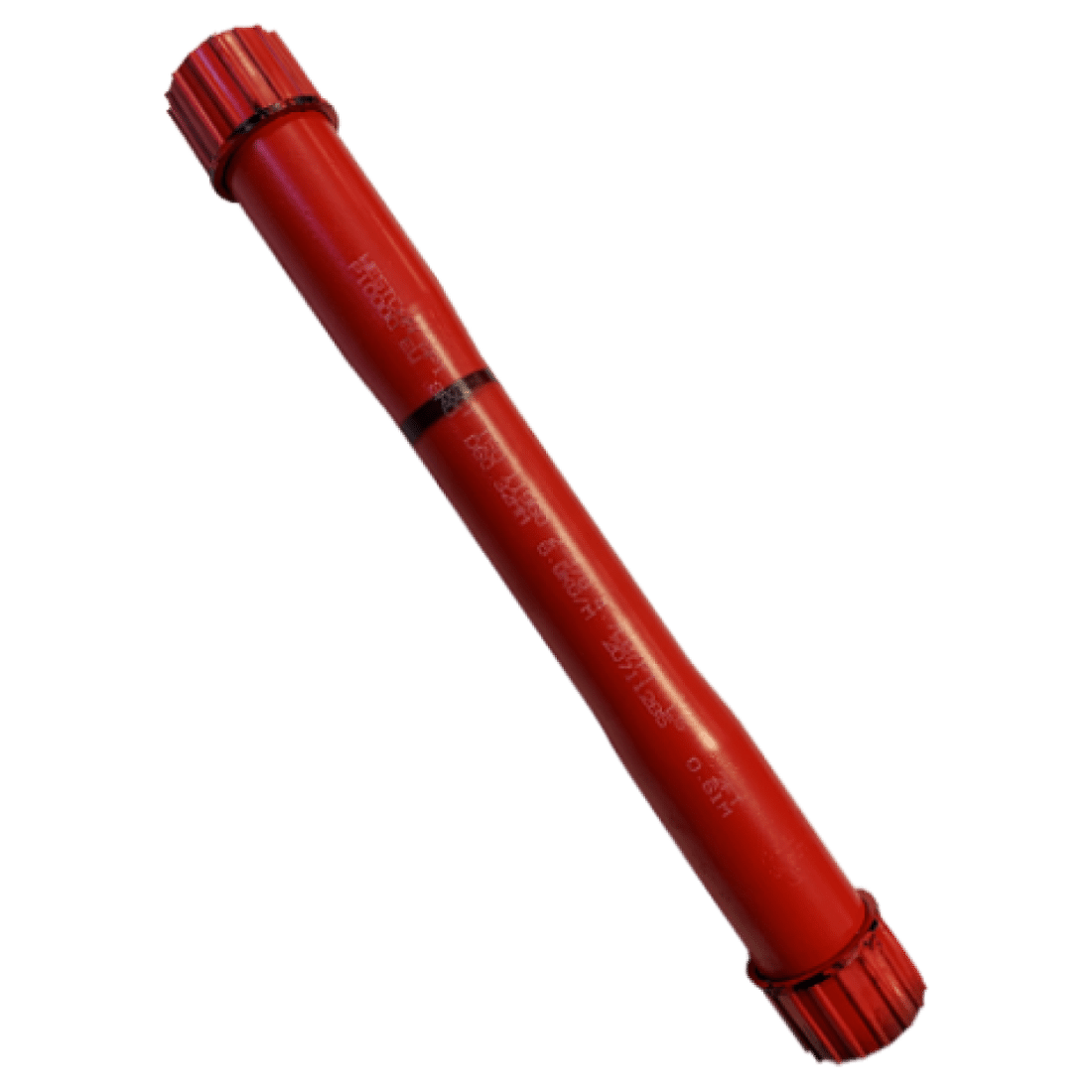

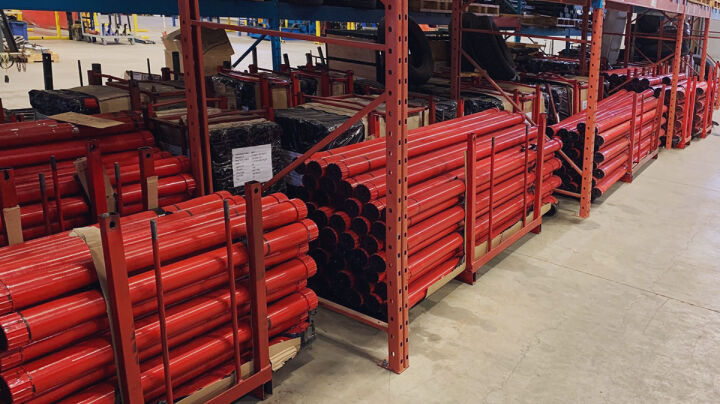

Tubing pup joints are short sections of tubing used to precisely adjust the total length of a production string. Westcan stocks a comprehensive range of pup joints in standard and non-standard lengths, covering all common API grades and end connections. Every pup joint is inspected for straightness, thread quality, and dimensional tolerance before shipping.

KEY FEATURES

Stock lengths from 2 ft to 12 ft; custom lengths available

Full-length drift tested to API specifications

Threads inspected per API 5B tolerances

Thread protectors supplied on all pup joints

Mill certifications and heat numbers traceable on request

Upset ends: External Upset (EUE) and Non-Upset (NUE)

APPLICATIONS

Production tubing strings

ESP completions

Rod pump installations

Gas lift completions

Injection strings

AVAILABLE GRADES

J55

L80

P110

SPECIFICATIONS
STANDARD API 5CT
OD RANGE TUBING - 2-3/8" to 4-1/2"
LENGTH RANGE 2 ft – 12 ft (custom available)
WALL THICKNESS As per API 5CT tables
END FINISH EUE, NUE
DRIFT Full-length API drift mandrel tested
THREAD INSPECTION API 5B / visual + gauge
CERTIFICATIONS Mill cert, heat traceability on request
SURFACE TREATMENT Painted, Nickel Coated, Polymer Coated
